KEY FEATURE OF CNC 500W SPINDLE MOTOR KIT
【Package include】- 1 x 500W Air-Cooled Spindle Motor, 1 x AC110V/220V Speed Governor with MACH3, 1 x 52mm Mount bracket, 13 x ER11 collect, 10 x drill bits, 2 x wrenches, 1 x power wire,1 x brush, 1 x fast wire connector.
【Specification】- Operating voltage: 100VDC, Power: 500W, Input: AC110V/220V, Speed: Up to idle up to 12,000 rev / min, Torque: 5000G/CM. Insulation resistance:> 2 megohms, Dielectric strength: 400V. Motor Length: 200MM, High precision spindle run out 0.01-0.03.
【Speed Power Switch】- Input voltage: AC110V/220V, 50/60Hz. Output current peak: 6A. Output voltage: DC0-100V. Please install in the place that is draughty, no dramatic impact, no vibration, no explosion hazard medium, no conductive metal particle.
【ER11 Collet Chuck】- 13Pcs ER11 Collet Set Gripping Range: 1MM to 7MM(1mm,1.5mm,2mm,2.5mm,3.175mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm,6.35mm,7mm). Run-out tolerance 0.01mm. For CNC milling Lathe Tool & Work holding Engraving machine.
Product Description
![微信图片_20220705162032](//iprorwxhmkqlll5p.ldycdn.com/cloud/ljBpnKilloSRojknjlrrio/weixintupian_20220705162032.jpg)

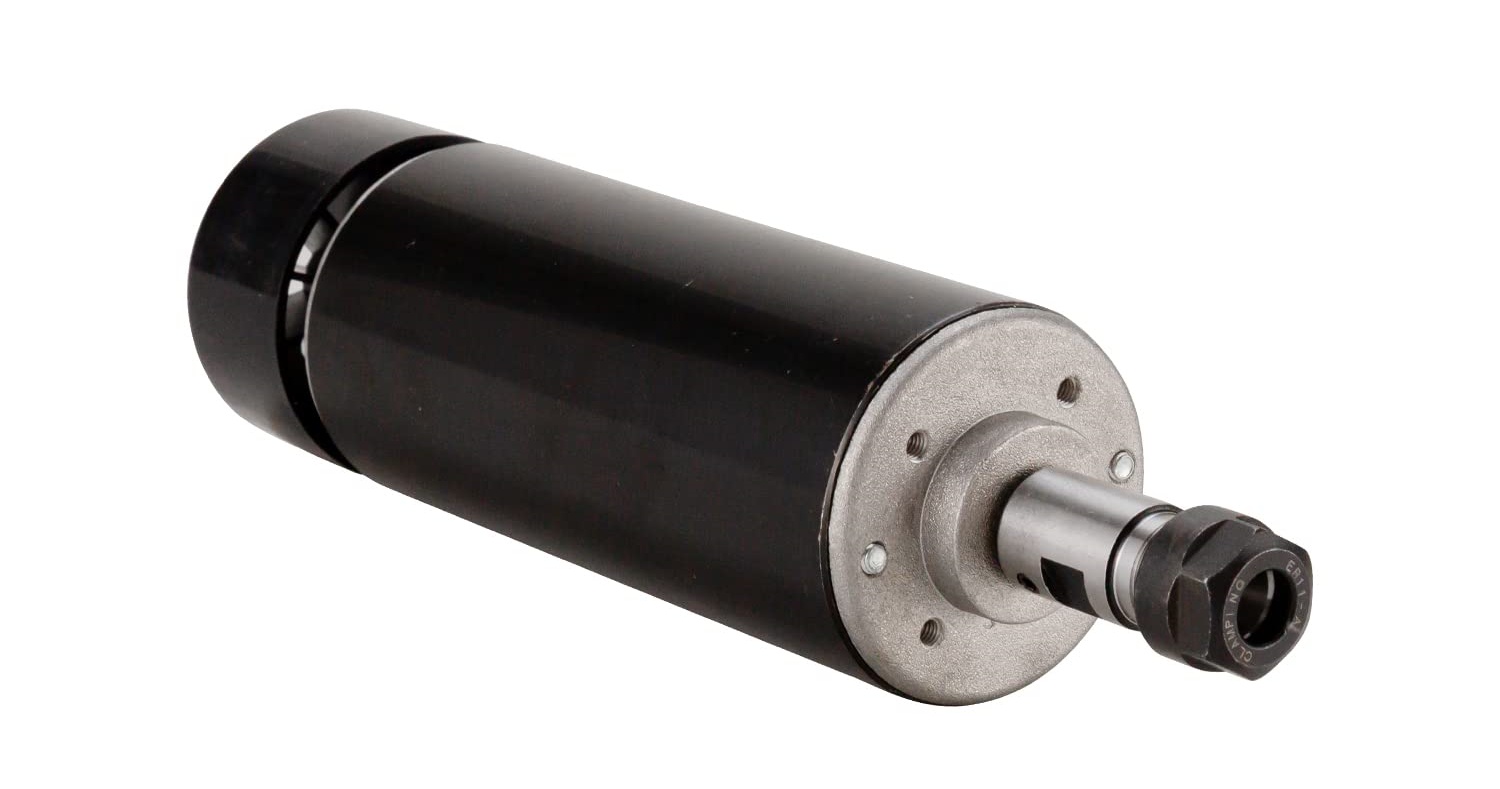

【Air Cooled Spindle 500W】
Operating voltage: 100VDC
Power: 500W
Current: 4A
Motor Length: 200MM
Speed: Up to idle up to 12,000 rev / min
Torque: 5000G/CM
Insulation resistance:> 2 megohms
Dielectric strength: 400V
High precision spindle runout 0.01-0.03
![微信图片_20220705135627](//iprorwxhmkqlll5p.ldycdn.com/cloud/liBpnKilloSRojknjlqjiq/weixintupian_20220705135627.jpg)
【Speed Power Converter】
Input voltage: AC110V/220V, 50/60Hz
Output current peak: 6A
Adaptive motor power: 100W-500W
Output voltage: DC0-100V
Size: 5.5×4.3×2inch
Air temperature around: -10~40°C
RH(relative air humidity) under 85%, draughty
Please install in the place that is draughty, no dramatic impact, no vibration, no explosion hazard medium, no conductive metal particle.
![微信图片_20220706141000](//iprorwxhmkqlll5p.ldycdn.com/cloud/lpBpnKilloSRojknklilio/weixintupian_20220706141000.jpg)
【Complete Accessories】
13Pcs ER11 Collet Set Gripping Range: 1MM to 7MM(1mm,1.5mm,2mm,2.5mm,3.175mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm,6.35mm,7mm),
Run-out tolerance 0.01mm (0.0006")
10pcs drill bits: Tip 0.1 mm, Diameter 3.175 mm 15 degrees(5pcs), 30 degrees(5pcs)
![微信图片_20220706140708](//iprorwxhmkqlll5p.ldycdn.com/cloud/ljBpnKilloSRojknklrmiq/weixintupian_20220706140708.jpg)
Package list
1 x 500W Air-Cooled Spindle Motor
1 x AC110V/220V Speed Governor with MACH3
1 x 52mm Mount bracket
13 x ER11 collect (1mm,1.5mm,2mm,2.5mm,3.175mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm,6.35mm,7mm)
10 x drill bits
2 x wrenches
1 x brush
1 x power wire
1 x fast wire connector
Wiring diagram
